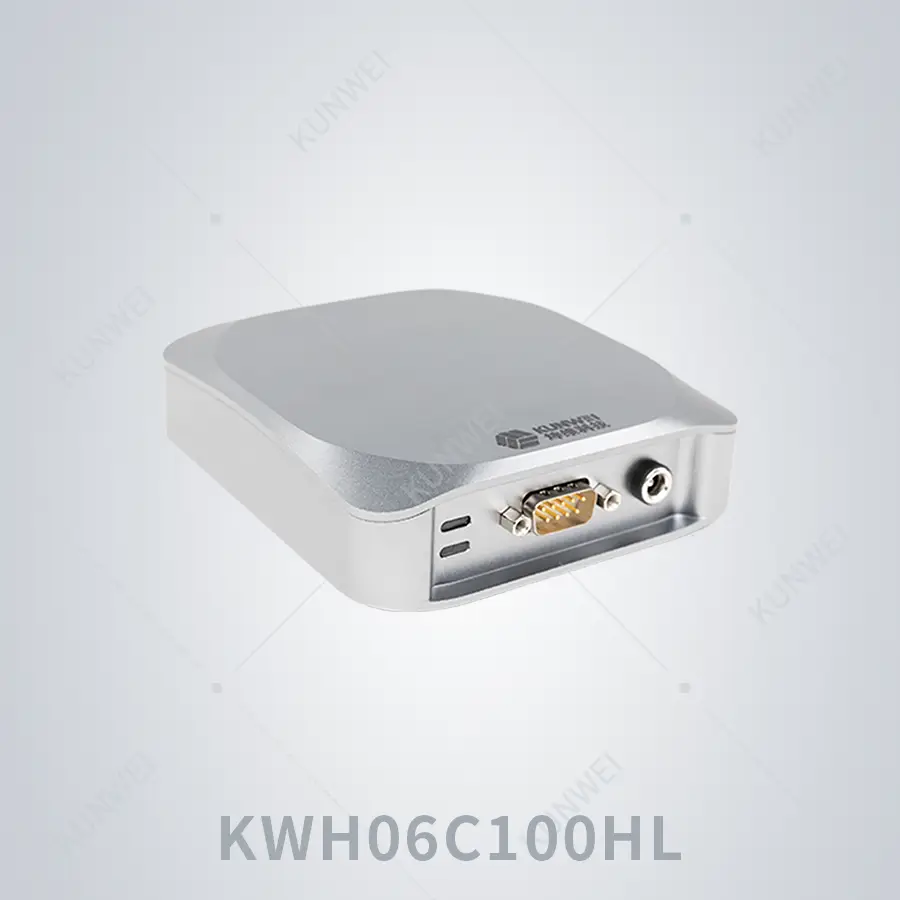

High Quality Digital Signal Acquisition Module

Features:

• Industrial aesthetics design
• Aviation grade aluminum alloy material
• Support 1 to 6 channel accquisition
• Strong adaptability

Type:

KWH06C100HLA: Convert analog signal to RS422 signal

KWH06C100HLB: convert analog signal to RS485 signal

KWH06C100HLC: convert analog signal to CAN signal

Communication interface:

Input: Sensor input millivolt analog signal to the Signal collector with HDB15 interface

Output: Signal collector output digital signal, DB9 interface, with ground screw

Sensors can be matched:

All six-axis force transducers with millivolt analog signal output can be matched, which are produced by Kunwei.

How to use :

Firstly, confirm whether the force sensor is our product, and the signal acquisition box can only be used with our product.

Then, the outlet interface of the sensor ( generally the default DB15 ) is connected with the signal acquisition module, and the interface is aligned with the cable interface of the signal acquisition module and pushed in. When pushed in, the screw connecting the shell needs to be screwed tightly to avoid loosening to hit the performance of IP64.

Finally, when the signal acquisition module is connected to the terminal equipment, it needs to be set according to the provided electrical interface parameters, and the corresponding connection is made for the power supply and the output cable of the signal. If the positive and negative connections of the power supply are reversed, the sensor may be damaged. Please be careful.
