High Resolution & Speed USB Signal Acquisition Module

Description

Features:

Small shape
Easy plug and play
High sampling rate
Reliable performance
Convenient and quick

Compared to our other signal conditioner, this signal collector has advantages such as compact appearance, reliable performance, and a maximum sampling rate of up to 4800sps. It can collect millivolt level analog signals of single component force sensors in real-time, convert them into the required load values for customers, and present them on terminal devices.
At the same time , Its use is also very simple, plug and play, without the need for external circuits or power supplies. It can meet the usage requirements of most single component analog signal sensors.

More Details

How to use it:

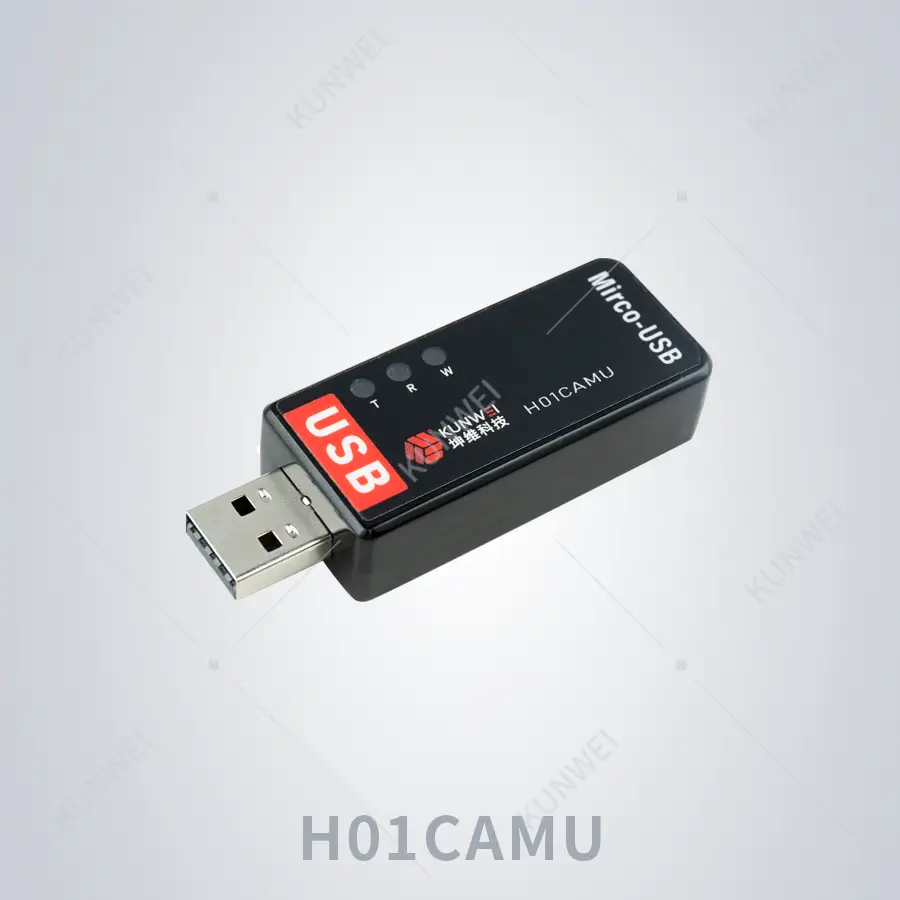

This collector has two interfaces, one micro-USB interface and one USB port. When using, we connect the sensor to the micro-USB interface of the collector first , and then plug the USB port into the laptop. At this time, we can see that the W signal light (work) of the USB signal collector starts flashing, indicating that the collector has completed normal power on.

After confirming that the collector is working properly, we open the data collection software on the computer. When set to passive reception mode, click Connect, and the T signal light (transfer) of the signal collector will start flashing, and the data will be continuously transmitted to the computer. In the active acquisition mode, which is the reply mode, the computer will send relevant instructions, and the R signal light (receive) and T signal light of the collector will start flashing, indicating that both command sending and data receiving are normal.

At this point, we can send and receive data through the signal collector. Gently press the sensor to see the real-time feedback force curve, which is very convenient.
